Marin

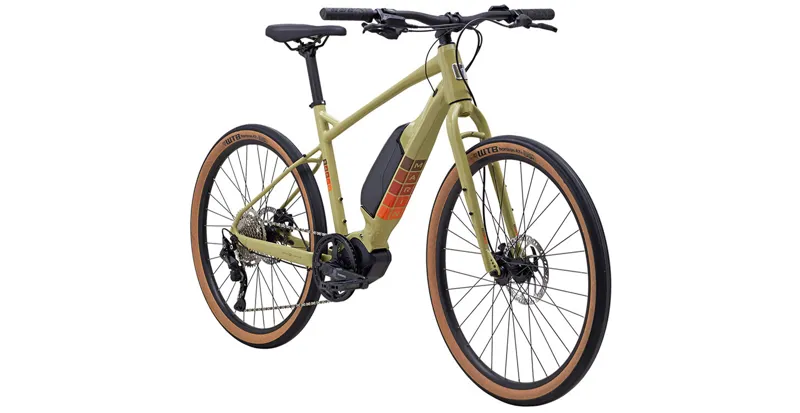

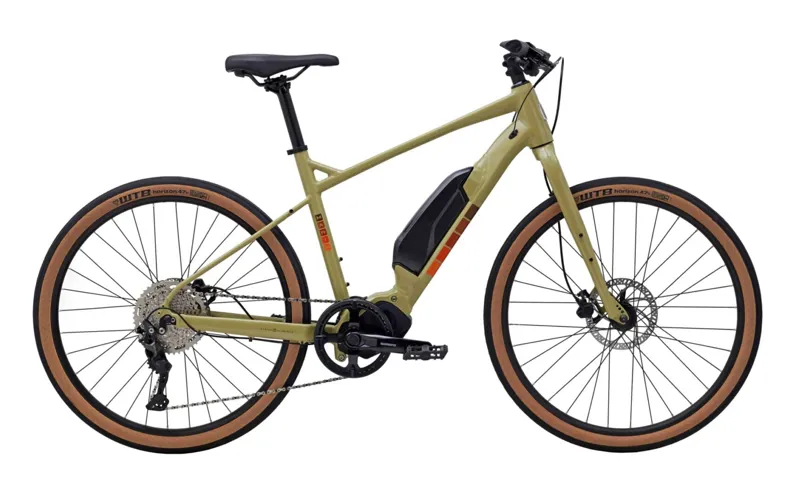

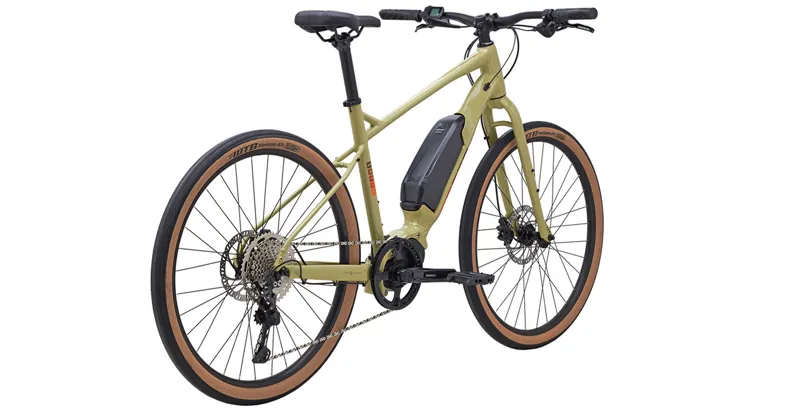

SAUSALITO E1 U

£1,899.99 £2,245.00 15% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

SAUSALITO E1 U

Season:MY21

Brand:Marin

Code:732457

COMMUTING

CRUISING

MULTI-SURFACE EXPLORING

The power to move through the urban landscape cleanly and efficiently is now as simple as pedalling. The Sausalito family of bikes helps you keep up the pace with a fun and lively assist to flatten hills and get you from A to B with a fresh smile, as well as clean clothes and a smart look.

Technical Information

SPECIFICATIONS

  • FRAME

    Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

  • FRONT SUSPENSION

    Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

  • RIMS

    Marin Aluminum Double Wall, Disc Specific

  • HUB, REAR

    Forged Alloy, Disc Specific, 32H

  • HUB, FRONT

    Forged Alloy, Disc Specific, 32H

  • SPOKE, NIPPLES

    14g Black Stainless Steel

  • TIRES

    WTB Horizon, 650Bx47, Wire Bead

  • DERAILLEUR, REAR

    Shimano Deore 10-Speed

  • DERAILLEUR, FRONT

    -

  • SHIFT LEVER

    Shimano Deore 10-Speed

  • CRANKSET

    Shimano, Aluminum w/ 44T Steel Chairing

  • MOTOR

    Shimano STEPS E5000 System

  • BOTTOM BRACKET

    -

  • CHAIN

    KMC X10E

  • CASSETTE

    Shimano Deore 10-Speed 11-46T

  • BRAKE, FRONT

    Tektro HD-M275 Hydraulic, 180mm Rotor

  • BRAKE, REAR

    Tektro HD-M275 Hydraulic, 180mm Rotor

  • BRAKE LEVERS

    Tektro Hydraulic

  • HANDLEBAR

    Marin MiniRiser Alloy

  • STEM

    Marin Alloy

  • GRIPS

    Marin Adventure

  • HEADSET

    FSA No. 57E

  • SEATPOST

    Marin Alloy, 30.9mm

  • SADDLE

    Marin City Plush

  • PEDALS

    Nylon Platform

  • KICKSTAND

    Rear Mount Alloy

  • BATTERY

    Shimano BT6010, 418Wh

Specifications, pricing, and availability are subject to change without notice.

Sizing Information

GEOMETRY

Sausalito E1 geometry diagram
SMLXL
STACK590617.7645.8673.9
REACH380405425440
HEADTUBE ANGLE69.5°69.5°69.5°69.5°
HEADTUBE LENGTH120150180210
SEATTUBE ANGLE74°74°74°74°
SEATTUBE LENGTH430480520558
TOPTUBE EFFECTIVE549582610.2633.2
BB HEIGHT296.5296.5296.5296.5
BB DROP45454545
CHAINSTAY455455455455
WHEELBASE1083.41118.91149.41174.9
STANDOVER HEIGHT679.38717.79747.88784.9
FORK OFFSET44444444
SEATPOST DIAMETER27.227.227.227.2
HANDLEBAR WIDTH720740740740
STEM LENGTH45454545
CRANK LENGTH170170175175

All lengths in millimeters
